Stem Walls

A stem wall is the part of the foundation that nobody sees and everybody depends on. It sits on top of the footing and rises up to meet the framing, carrying the weight of the house or building straight down into the footing and the soil below. It also lifts the wood of the structure up off the dirt, which keeps moisture and rot away from the bottom plate. On a Front Range build, the stem wall is where the load path either gets done right or starts causing problems that show up years later.

We form, reinforce, and pour stem walls plumb and true so the framing above sits square and the anchor bolts land where the framer needs them. That sounds simple, and the idea is. The execution is where it matters. A wall that is out of plumb, short on steel, or set on a weak footing puts every wall, door, and window above it slightly off, and on our expansive clay soils a poorly built foundation has a way of moving. We build the wall to the engineer's drawings and the soil report so it holds its line.

Where The Stem Wall Sits In The Foundation

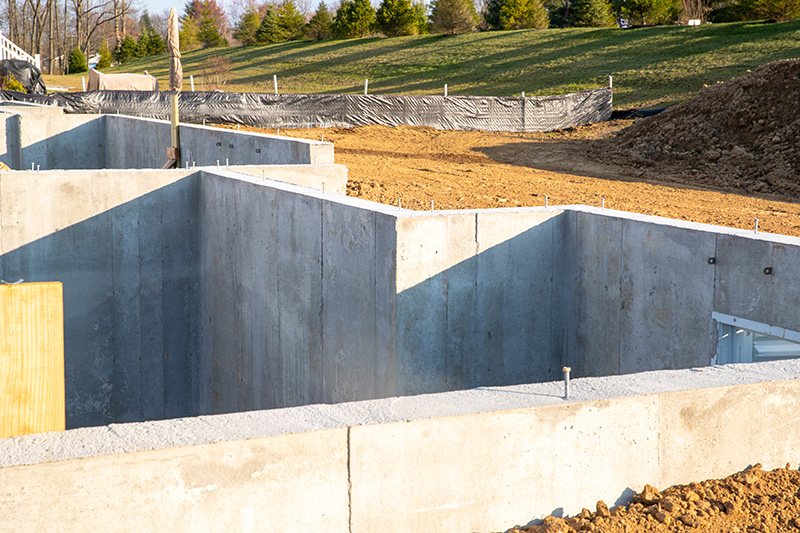

Think of the foundation as three connected pieces. The footing is the wide base that spreads the load across the soil. The stem wall is the vertical section that rises from the footing up to grade and a little above. The framing then bolts down onto the top of that wall. The stem wall's whole job is to transfer the weight of everything above it down into the footing without twisting, leaning, or cracking. It also creates the height that gets your wood framing up off the ground, which matters here where snow piles against the base of a house all winter. When the footing, stem wall, and framing line up correctly, the load runs straight and the structure stays square. When the stem wall is off, every problem above it compounds.

How We Form, Reinforce, And Pour It

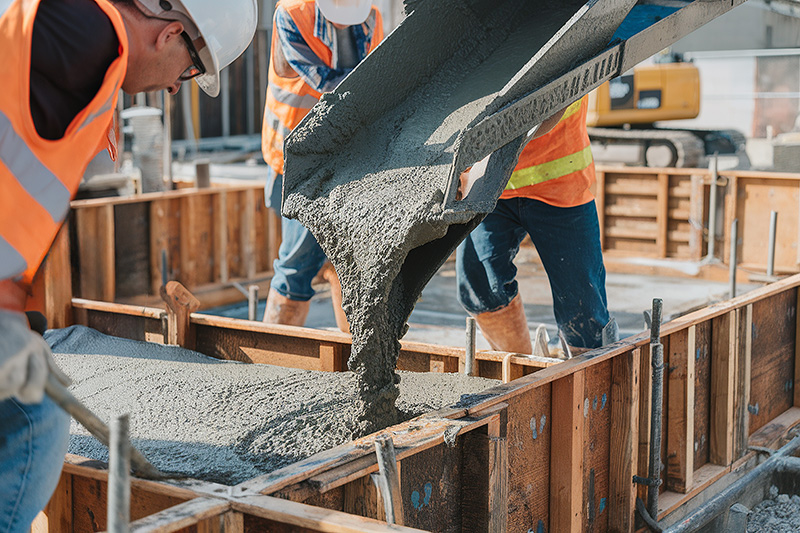

We set the forms to the footing and check them plumb and level before any concrete moves. Reinforcing steel ties the stem wall to the footing so the two act as one piece instead of two stacked blocks, and we place that steel to the spacing the engineer calls out. The pour itself uses an air-entrained mix built for the freeze-thaw cycle, the same kind of mix that keeps concrete from scaling and spalling through Colorado winters. We consolidate the concrete so there are no voids hiding behind a clean-looking face, then we cure it properly. You can usually work on it in 24 to 48 hours, and it reaches full strength around 28 days. Rushing the cure to save a day is how walls end up weaker than the paper says they are.

Setting Anchor Bolts So The Framer Can Trust Them

The anchor bolts in the top of a stem wall are how the building gets tied to its foundation, and their placement is not a detail you fix later. They have to land at the right spacing, the right depth, and the right distance from the edge, and they have to be set while the concrete is still wet and held steady until it sets. Bolts that drift, lean, or sit too close to the form edge force the framer to improvise, and that weakens the connection that is supposed to hold the structure down in high wind. We lay out the bolts to the plans, hold them in place during the pour, and check them before we walk away, so the crew that comes after us bolts down to a wall they can trust.

Stem Walls And Heaving On Expansive Clay

Here is the honest concern with any foundation element on the Front Range: our expansive clay soils swell when they take on water and shrink when they dry out, and that movement can lift or drop a foundation that was not built to resist it. A stem wall is not immune to it. The defense is not a thicker wall alone, it is the whole system. That means a footing set at the right depth, steel that ties the footing and stem wall together so they move as one, a soil report that tells us what we are actually building on, and drainage that keeps water away from the base in the first place. We have a structural engineer on staff for the jobs that need the calculations run, and we build to that design rather than guessing. We will not tell you clay never moves. We will tell you we build the wall so it is far less likely to be the thing that moves.

Where Stem Walls works best

From homes to commercial sites across the Front Range, here is where stem walls earns its place.

What this service covers

• Foundation stem walls formed and poured plumb
• Anchor bolt layout and setting
• Reinforced pours tied to the footing
• Footing-to-frame transitions
• Air-entrained mix for freeze and thaw
• Engineered to the soil report when needed
• Inspection-ready work

Built for the Front Range

Concrete behaves differently at altitude. Our expansive clay soils swell with moisture and shrink when they dry, and the freeze and thaw cycle works on any surface that takes on water. Every stem walls project we pour accounts for both, from base preparation and drainage to air-entrained mixes, proper reinforcement, and control joints cut on time. That is how the work holds its shape and finish through Colorado winters instead of failing by spring.

You also get a written estimate before anything starts, a structural engineer on staff for the jobs that need one, and a crew that pulls and manages permits when the project calls for them. Licensed, bonded, and insured, with finishes that range from a clean broom texture to stamped, colored, and sealed.

What shapes your Stem Walls project

Foundations are engineered, not estimated, and that is exactly why they hold up on Front Range soil. Here is what shapes a Stem Walls project.

• The soils report. Expansive clay reacts differently lot to lot. A soils report tells the engineer how reactive the ground is and how to detail the foundation for it.
• Engineering and design. Footing depth, reinforcement, and slab details are designed to the load and the soil. This is the work that keeps a foundation from heaving and cracking.
• Depth and footings. Footings sit below frost and, on reactive soils, may reach down to stable material with piers or caissons. Depth is set by conditions, not convenience.
• Reinforcement. Steel ties the system together and resists the forces the soil and structure put on it. Placement follows the drawings.
• Site access and permits. Excavation access and the permitting and inspections the build requires both factor into the schedule and the cost, and we manage them.

Caring for your concrete

The single most important thing you can do for a stem walls is control water. Keep gutters and downspouts carrying water well away from the foundation, maintain positive grading so the ground slopes away from the house, and watch for any new horizontal or stair-step cracking, which is worth a professional look. And whatever the project, the same rule applies across the Front Range: keep water from sitting on or soaking into the surface, and the concrete will reward you with decades of service.
